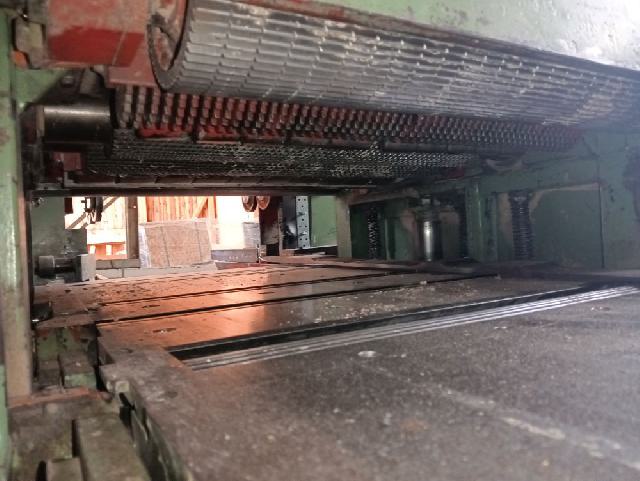

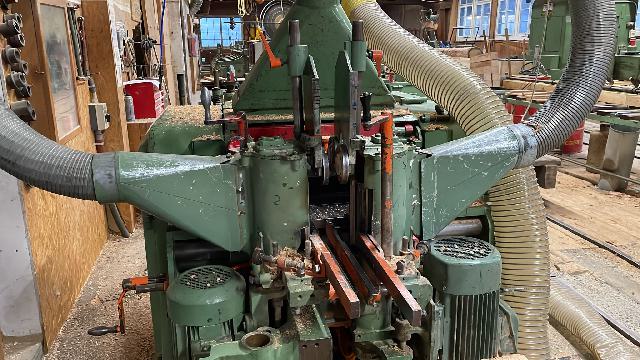

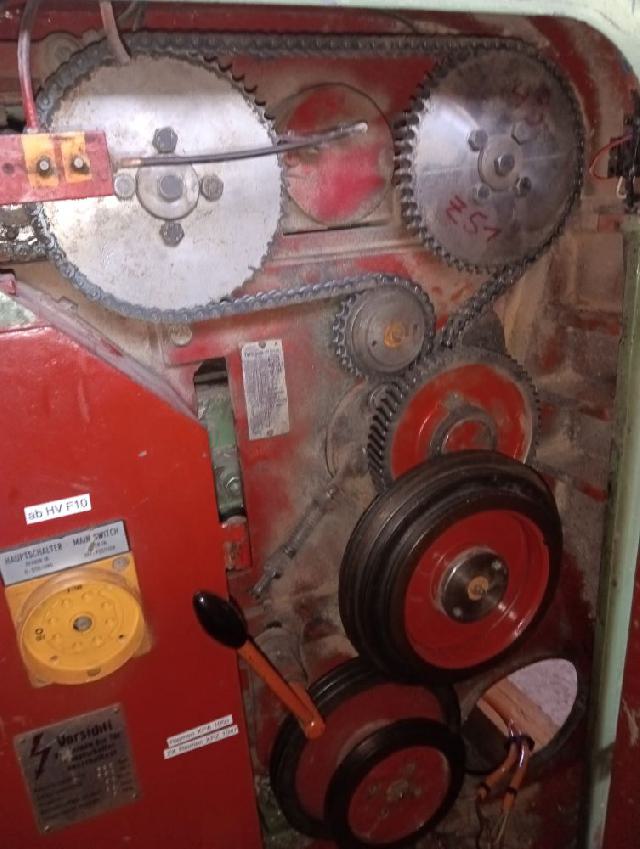

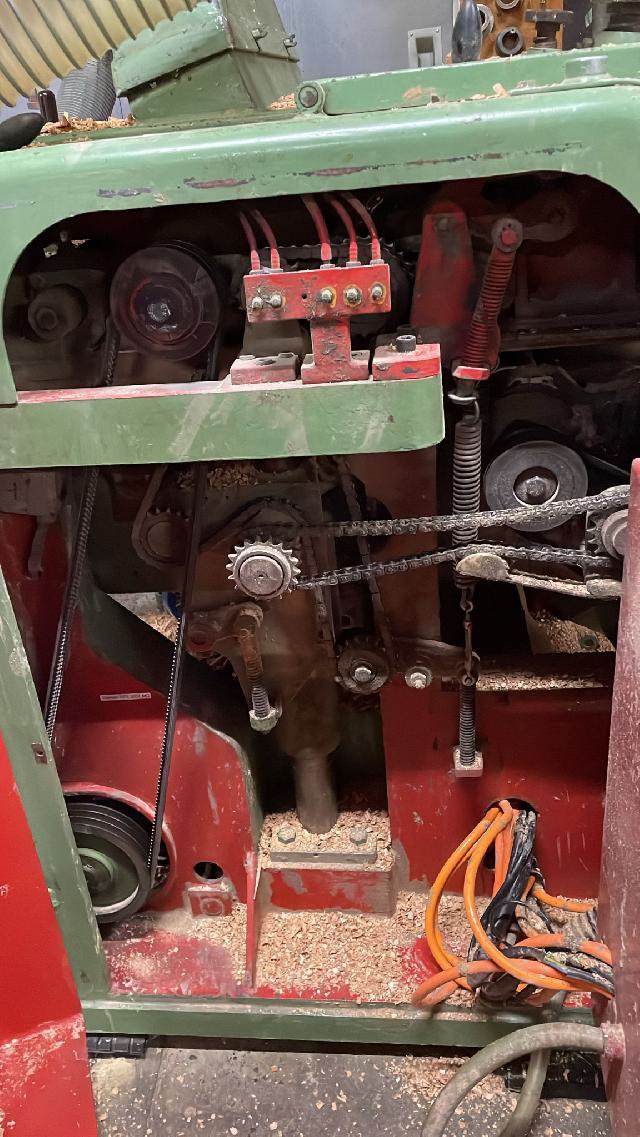

◀ Planer & moulder Kupfermühle Vuin 605
Technical details
ID: MS279
| Year: | 1970 |
| Working width: | 605 mm |
| Working height: | 200 mm |
| Working height 4-side: | 200 mm |
| Number of spindles: | 4 |
| Spindle configuration: | b-t-r+l |
| Spindle diameter: | X-X-40-40 m m |
| Spindle rotation speed: | 5300 U/min |
| Motor power: | 5,5-7,5-5,5-5,5 kW |
| Working width adjustments: | manuell |
| Working height adjustments: | motorized |
| Feed speed: | 7-24 m/min |
| Feed motor: | 2,2 / 3 kW |
| Feed-system: | Chain |
| Driven bed rollers: | 3 |
| Infeed rollers: | 4 |
| Tools horizontal: | 125 Z4 |
| Tools vertical: | 140x200x40 Z4 |
| Chip removal bottom: | 15 mm |
| Chip removal top: | 20 mm |
| Extraction socket diameter: | 160-160-120-120 mm |
| Weight: | 3800 kg |
| Dimensions: | 170x160x180 mm |
| Voltage: | 380V 50Hz 3Ph |
