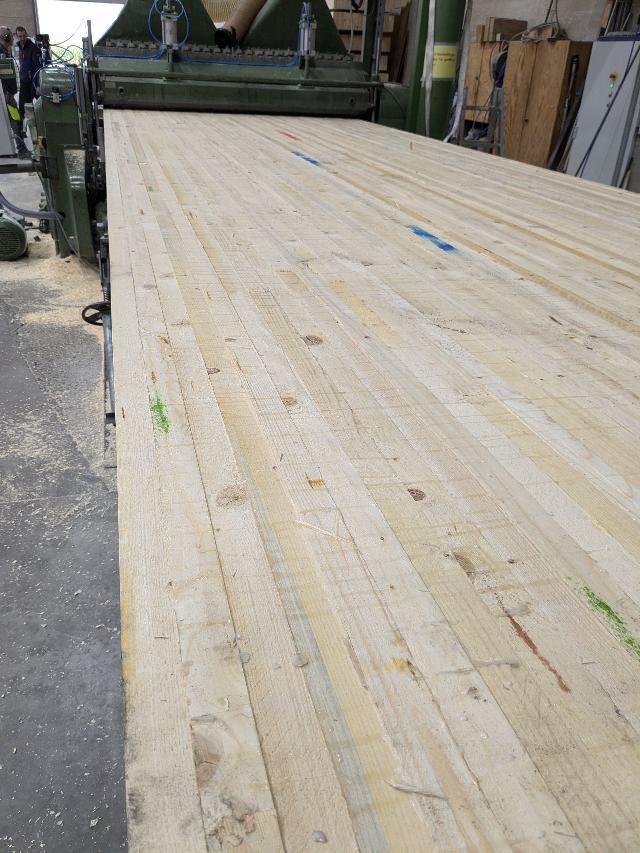

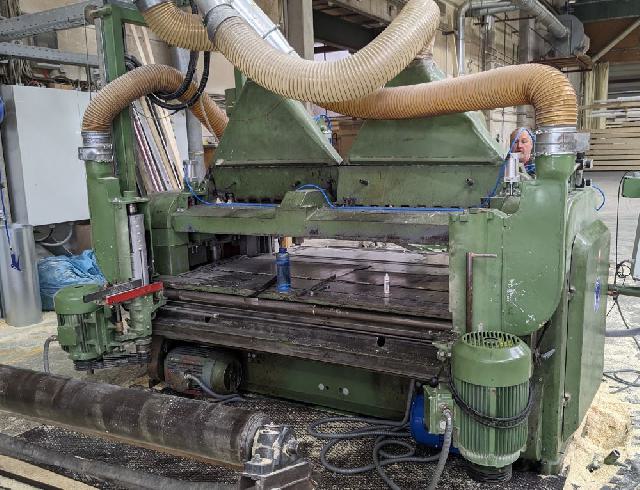

◀ Planer for laminated beams Kupfermühle DOMA-G 2050
Technical details
ID: MS278
| Year: | R2025 |
| Working width: | 2050 mm |
| Working height: | 100 - 400 mm |
| Working height 4-side: | 450 mm |
| Number of spindles: | 4 |
| Spindle configuration: | 2 x bottom - 2 x top + left + right |
| Spindle diameter: | X-X-X-X-45-45 m m |
| Spindle rotation speed: | 5300 U/min |
| Outboard bearings for spindle: | 1-2-3-4-5-6 |
| Motor power: | 18,5-18,5-22-22-15-15 kW |
| Working width adjustments: | Digital adjustments |
| Working height adjustments: | Digital adjustments |
| Feed speed: | 26 m/min |
| Feed motor: | 5,5 kW |
| Driven bed rollers: | 2 |
| Infeed rollers: | 2 |
| Tools vertical: | 140 x 450 x 45 |
| Constant table height: | option |
| Chip removal bottom: | 15 mm |
| Chip removal top: | 20 mm |
| Chip removal right: | 20 |
| Chip removal left: | 20 |
| Extraction socket diameter: | 300-200-200-160-160 mm |
| Weight: | 8000 kg |
| Dimensions: | 3000 x 2900 x 1700 mm |
| Voltage: | 400V 50Hz 3Ph. |
