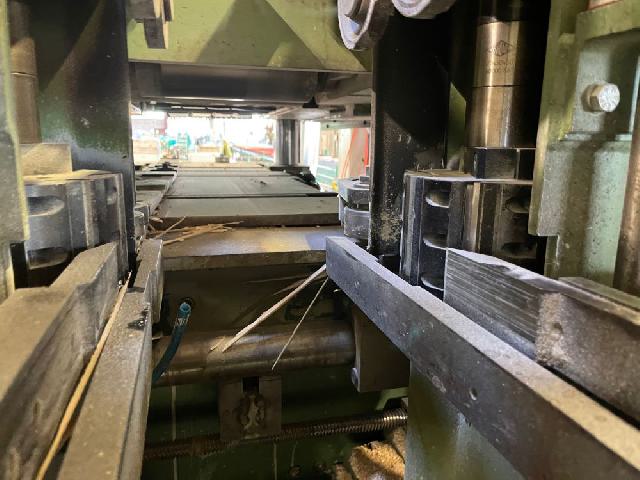

◀ Planer for lamination Kupfermühle KH-30
Technical details
ID: MS256
| Year: | 1986 |
| Working width: | 300 mm |
| Working height: | 250 mm |
| Working height 4-side: | 200 mm |
| Number of spindles: | 4 |
| Spindle configuration: | b-t-r+l |
| Spindle diameter: | 60-60-40-40 m m |
| Spindle rotation speed: | 5300- U/min |
| Outboard bearings for spindle: | 1-2 |
| Jointer for spindle: | 1-2 |
| Motor power: | 22-30-11-11 kW |
| Working width adjustments: | manuell |
| Working height adjustments: | Digital adjustments |
| Feed speed: | 20-150 m/min |
| Feed motor: | 15 kW |
| Driven bed rollers: | 3 |
| Infeed rollers: | 4 |
| Outfeed rollers: | 2 |
| Tools horizontal: | D200-L300-B60 Z10 |
| Constant table height: | ca. 800 mm |
| Chip removal bottom: | 12 mm |
| Chip removal top: | 20 mm |
| Chip removal right: | 15 |
| Chip removal left: | 15 |
| Extraction socket diameter: | 250-250-160-160 mm |
| Weight: | 6000 kg |
| Voltage: | 380V 50Hz 3Ph |
