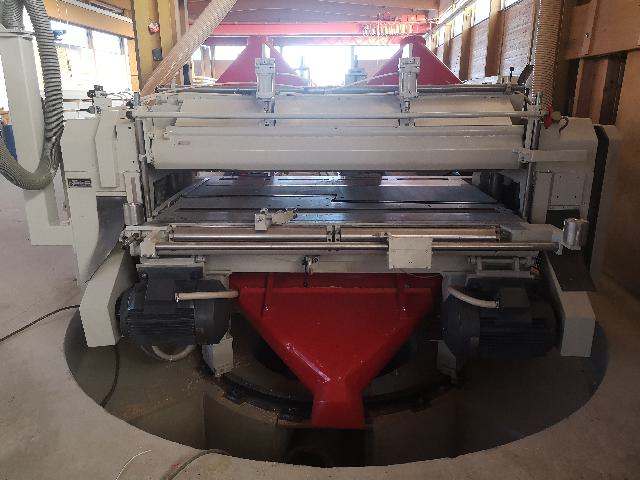

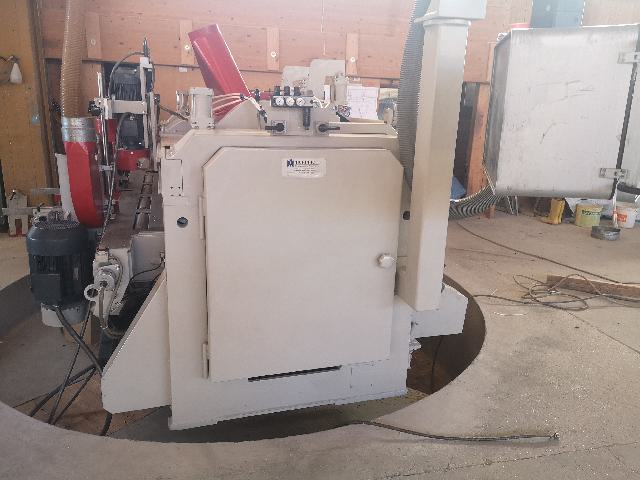

◀ Planer & moulder Kupfermühle DOMA-X 2300
Technical details
ID: MS238
| Year: | R2020 |
| Working width: | 2300 mm |
| Working height: | 350 mm |
| Working height 4-side: | 300 mm |
| Number of spindles: | 6 |
| Spindle configuration: | 2 x bottom - 2 x top + left + right |
| Spindle diameter: | X-X-X-X-40-40 m m |
| Motor power: | 22-22-30-30-15-15 kW |
| Working width adjustments: | Digital adjustments |
| Working height adjustments: | Digital adjustments |
| Feed speed: | 26 m/min |
| Feed motor: | 5,5 kW |
| Driven bed rollers: | 2 |
| Infeed rollers: | 2 |
| Tools vertical: | 140 x 300 x 40 |
| Turning unit: | for curved beams |
| Extraction socket diameter: | 300-200-200-140-140 mm |
| Weight: | 10000 kg |
| Dimensions: | 3400 x 2900 x 1700 mm |
| Voltage: | 400V 50Hz 3Ph. |
