◀ Planer & moulder Kupfermühle Doma-X 2300
Technical details
ID: MS176
| Year: | 1991 |
| Working width: | 2300 mm |
| Working height: | 350 mm |
| Working height 4-side: | 300 mm |
| Number of spindles: | 4 |
| Spindle configuration: | b-t-r+l |
| Spindle diameter: | vert. 45 m m |
| Motor power: | 22-22-30-30-15-15 kW |

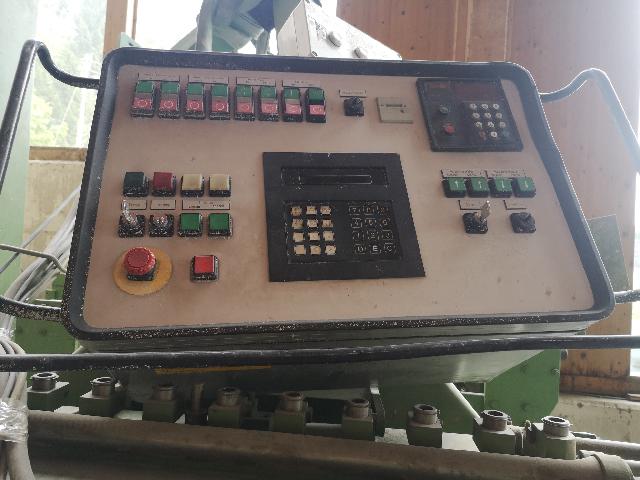

| Working width adjustments: | Digital adjustments |
| Working height adjustments: | Digital adjustments |
| Feed speed: | 0 - 30 m/min |
| Feed motor: | 6,5 kW |
| Feed-system: | Chain |
| Driven bed rollers: | 2 |
| Infeed rollers: | 2 |
| Tools horizontal: | dia. 190mm Z4 |
| Tools vertical: | dia. 180mm Z4 |
| Champfering spindles: | 2 x 1,85 kW |
| Weight: | 12000 kg |
| Dimensions: | 4000 x 2500 x 2500 mm |
| Voltage: | 400V 50Hz |
