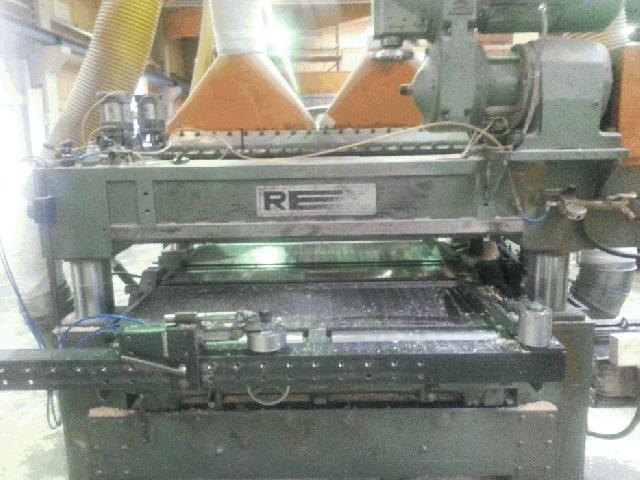

◀ Planer & moulder REX HOMS-1430-W
Technical details
ID: MS175
| Year: | 1988 |
| Working width: | 1430 mm |
| Working height: | 17-310 mm |
| Working height 4-side: | 17-250 mm |
| Number of spindles: | 4 |
| Spindle configuration: | b-t-r+l |
| Spindle rotation speed: | 4000 U/min |
| Outboard bearings for spindle: | 1-2 |
| Motor power: | 30-30-11-15 kW |
| Working width adjustments: | Digital adjustments |
| Working height adjustments: | Digital adjustments |
| Feed speed: | 5 - 30 m/min |
| Feed motor: | 7,5 kW |
| Constant table height: | ca.1000 mm |
| Chip removal bottom: | 10 mm |
| Chip removal top: | 16 mm |
| Chip removal right: | 20 |
| Chip removal left: | 20 |
| Weight: | ca. 8000 kg |
| Voltage: | 400V 50Hz |
