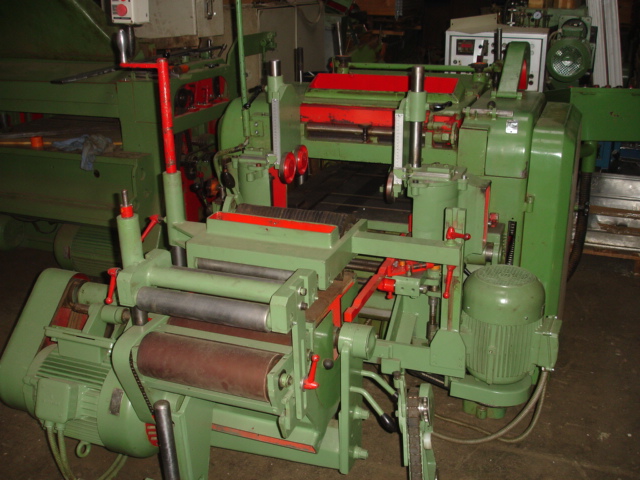

◀ Planer & moulder Kupfermühle Vuin 605
Technical details
ID: MS171
| Year: | 1979 - R20 |
| Working width: | 605 mm |
| Working height: | 200 mm |
| Working height 4-side: | 200 mm |
| Number of spindles: | 5 |
| Spindle configuration: | b-t-r+l-b |
| Spindle diameter: | vert. 40 m m |
| Motor power: | 5,5-7,5-5,5-5,5-15 kW |
| Working width adjustments: | manuell |
| Working height adjustments: | motorized |
| Feed speed: | 7-23 m/min |
| Feed motor: | 2,2 / 3 kW |
| Feed-system: | Chain |
| Driven bed rollers: | 3 |
| Infeed rollers: | 4 |
| Outfeed rollers: | 2 |
| Constant table height: | optional |
| Chip removal bottom: | 12 mm |
| Chip removal top: | 20 mm |
| Weight: | ca. 3500 kg |
| Dimensions: | 2500 x 1700 x 1800 mm |
| Voltage: | 380V 50Hz |
