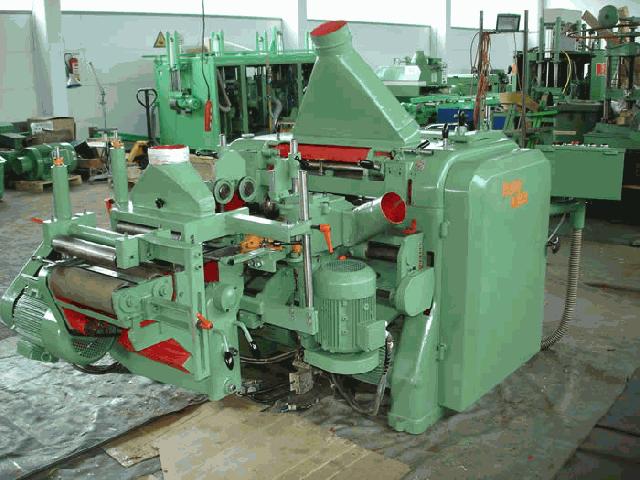

Dbl or 4-side planer moulder Kupfermühle Vuin 605
Technical details
ID: MS129
| Year | R2009 |
| Working width | 605 mm |
| Working height | 200 mm |
| Working height 4-side | 160 mm |
| Number of spindles | 5 |
| Spindle configuration | b-t-r+l-b |
| Spindle diameter | 35 / 40 m m |
| Spindle rotation speed | 6000 U/min |
| Outboard bearings for spindle | 5 |
| Motor power | 5,5-7,5-4-4-7,5 kW |
| Working width adjustments | Working height |
| Feed speed | 23 m/min |
| Feed motor | 3 kW |
| Driven bed rollers | 3 |
| Infeed rollers | 4 |
| Outfeed rollers | 2 |
| Tools horizontal | 152 mm |
| Tools vertical | 125-180 mm |
| Chip removal bottom | 12 mm |
| Chip removal top | 20 mm |
| Weight | 3500 kg |
| Dimensions | 2500 x 1800 x 1600 m mm |
| Voltage | |
