◀ Planer & moulder Kupfermühle Doma-g 2050
Technical details
ID: MS108
| Year: | R2011 |
| Working width: | 100-2050 mm |
| Working height: | 30-300 mm |
| Working height 4-side: | 30-300 mm |

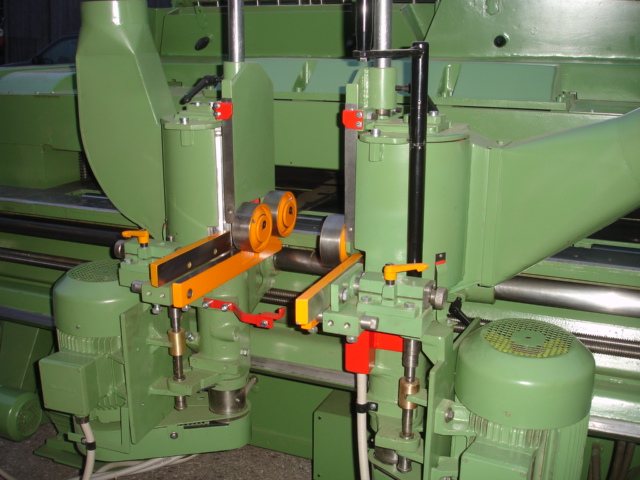

| Number of spindles: | 4-6 |
| Spindle configuration: | b-t-r+l |
| Spindle diameter: | vert. 40 m m |
| Motor power: | 22-22-30-30-(11-11) kW |
| Working width adjustments: | SPS |
| Working height adjustments: | Digital adjustments |
| Feed speed: | 4,5 - 26 m/min |

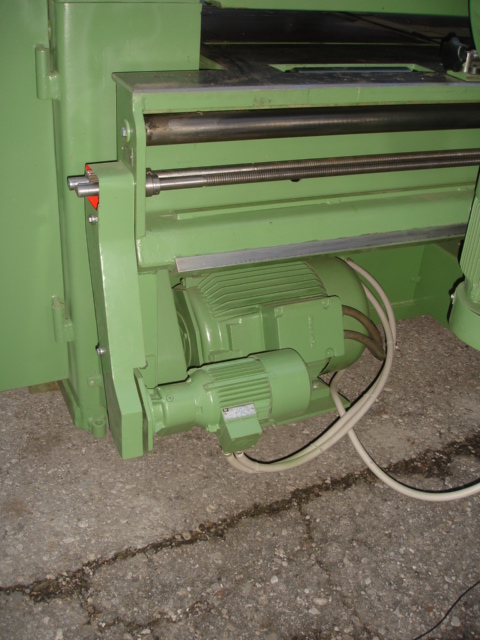

| Feed motor: | 3 / 4,2 kW |
| Driven bed rollers: | 2 |
| Infeed rollers: | 2 |
| Tools horizontal: | 4 x 161 Z4 |
| Tools vertical: | 2 x 125 - 160 Z4 |
| Turning unit: | for curved beams |
| Chip removal bottom: | 15 mm |
| Chip removal top: | 20 mm |
| Weight: | 9000 kg |
| Dimensions: | 3400 x 2900 x 1700 mm |
