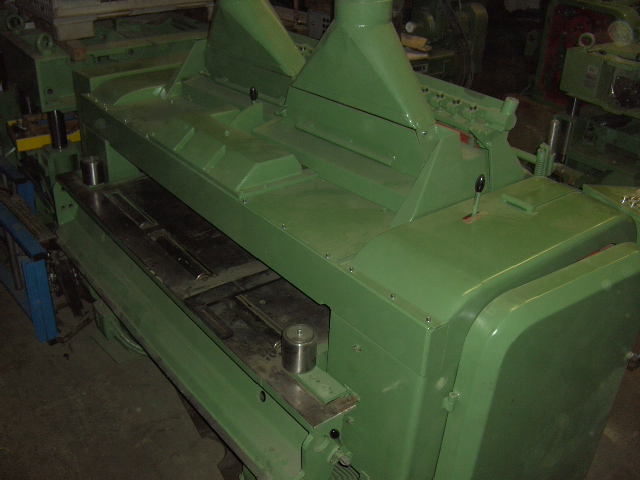

◀ Planer & moulder Kupfermühle Doma-g 1620
Technical details
ID: MS071
| Year: | R2009 |
| Working width: | 1620 mm |
| Working height: | 300 mm |
| Number of spindles: | 4 |
| Spindle configuration: | b-t |
| Motor power: | 18,5-18,5-22-22 kW |
| Working width adjustments: | Working height |
| Feed speed: | 36 m/min |
| Feed motor: | 11 kW |
| Driven bed rollers: | 2 |
| Infeed rollers: | 2 |
| Tools vertical: | 140 x 200 x 40 |
| Chip removal bottom: | max. 15 mm |
| Chip removal top: | max. 20 mm |
| Weight: | 9.000 kg |
| Dimensions: | 2900x2500x2200 mm |
