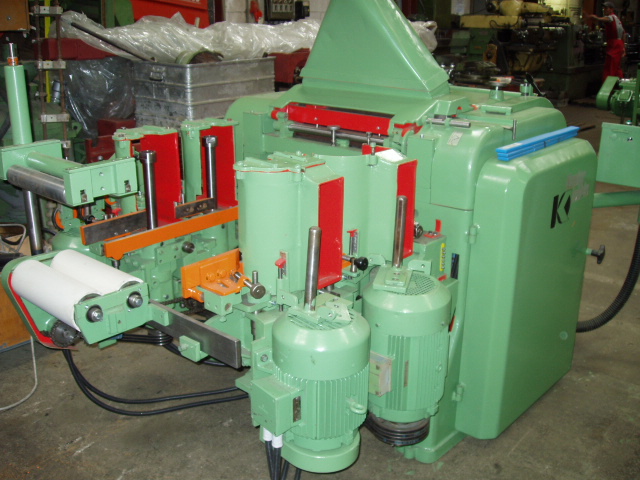

◀ Planer & moulder Kupfermühle Vuin 605
Technical details
ID: MS025
| Year: | 1978 |
| Working width: | 605 mm |
| Working height: | 200 mm |
| Working height 4-side: | 200 mm |
| Number of spindles: | 6 |
| Spindle configuration: | b-t-r+l-r+l |
| Spindle diameter: | 40 m m |
| Motor power: | 5,5-7,5-7,5-7,5-11-11 kW |
| Working width adjustments: | Working height |
| Working height adjustments: | Optional |
| Feed speed: | 7-23 m/min |
| Feed motor: | 3 kW |
| Driven bed rollers: | 3 |
| Infeed rollers: | 4 |
| Outfeed rollers: | 2 |
| Chip removal bottom: | 15 mm |
| Chip removal top: | 20 mm |
| Weight: | 3500 kg |
